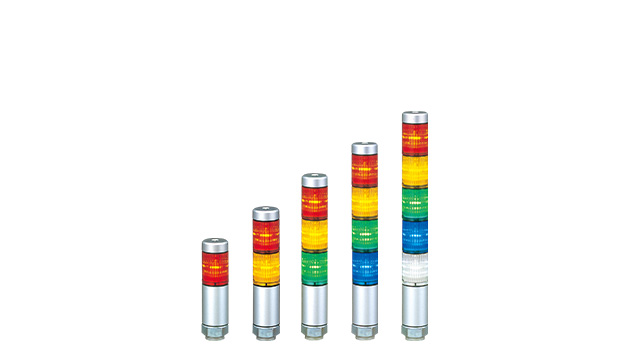

LR6 Series
• Operating Ambient Temperature: -20℃ - +50℃
• Mounting Location: Indoor Use
• Mounting Direction : Upright Position
• Protection Rating*1: IP65(IEC 60529) / NEMA TYPE 4X, 13
• Insulation Resistance: More than 1MΩ at DC500V between the power input lead and chassis
• Withstand Voltage: AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
• Flash Rate: 60 ±2 Flashes / min.
• Sound Level: LR6 Typ. 88dB
• Sound Reduction*2: Approx. -10dB reduction
• Environmental Conditions: Buzzer Sound No.4 (Sweep) from all directions at 1m distance
• Buzzer Sound: 4 patterns*2
• Transistor Output: NPN / PNP (AC100 - 240V is NPN only)
